LFC Pancake & Twist Ring Load Cell
Capacity:900kN,1200kN,1800kN,2700kN,4500kN,9000kN
200Klb,270klb,400klb,600klb,1000klb,2000klb
Wheel shaped load cell, shear beam, good rigidity, strong side force resistance, high output, overload self-locking.
Potted sealed or hermetically sealed.
Widely used in truck scale, railroad scale, tester, crane scale, etc.
Interchangeable Interface 1200
SPECIFICATIONS
|
Rated output
|
4.0±0.1% / 2.0±0.1% mv/v
|
|
Non-linearity
|
0.07 (200klb/900kN)
0.08 (270klb/1200kN)
0.12 (400-600klb/1800-2700kN)
0.15 (1000klb/4500kN)
0.20 (2000klb/9000kN)
|
|
Hysteresis
|
0.07 (200klb/900kN)
0.08 (270klb/1200kN)
0.12 (400-600klb/1800-2700kN)
0.15 (1000klb/4500kN)
0.20 (2000klb/9000Kn)
|
|
Creep in 30 minutes
|
0.07 (200klb/900kN)
0.08 (270klb/1200kN)
0.12 (400-600klb/1800-2700kN)
0.15 (1000klb/4500kN)
0.20 (2000klb/9000kN)
|
|
Zero balance
|
±1 %F.S
|
|
Input resistance
|
385±15Ω
|
|
Output resistance
|
350±3Ω
|
|
Insulation resistance
|
≥5000MΩ
|
|
Excitation voltage
|
10V (maximum 15V) AC/DC
|
|
Environmental protection
|
IP67
|
|
Safe overload
|
150 %F.S
|
|
Ultimate overload
|
200 %F.S
|
|
Operating temperature range
|
-10～+40 ℃
|
|
Material
|
Alloy steel
Stainless steel
|
|
Wiring
|
+E Red
-E Black
+S Green
-S White
|
|

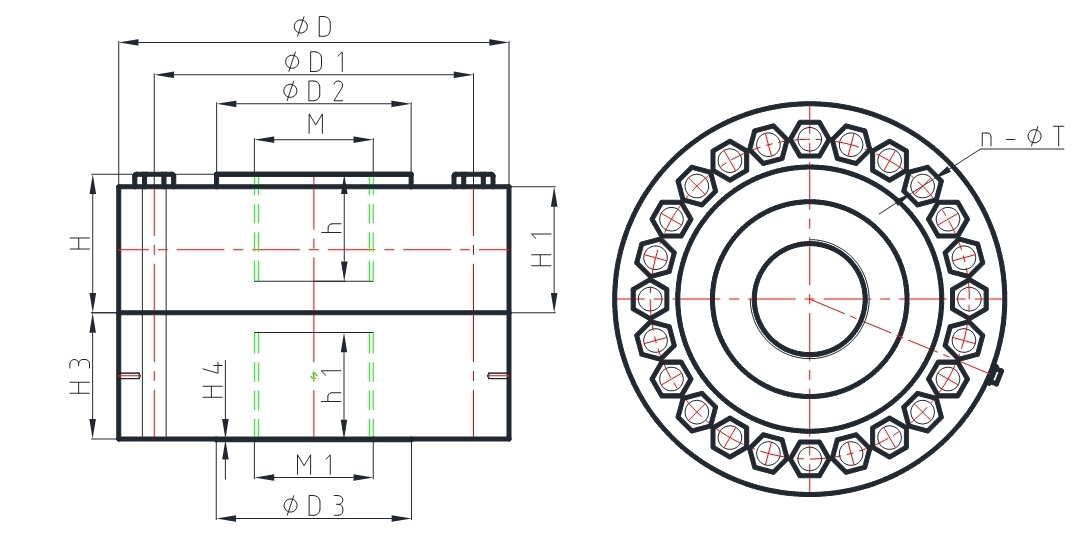

Capacity
|
Size mm
|
|
klb
|
D
|
D1
|
D2
|
D3
|
M
|
H
|
H1
|
H3
|
H4
|
h
|
h1
|
M1
|
n-фT
|
|
900
|
279
|
228.6
|
122.2
|
114.3
|
M72×2-4H
|
88.9
|
76.2
|
76.2
|
0.8
|
82.6
|
69.8
|
M72×2-4H
|
16×15.5
|
|
1200
|
279
|
222.2
|
122.2
|
114.3
|
M72×2-4H
|
101.6
|
82
|
101.6
|
0.8
|
95.3
|
69.8
|
M72×2-4H
|
16×20.1
|
|
1800
|
304.8
|
241.3
|
144.3
|
152.4
|
M90×3-4H
|
114.3
|
108
|
114.3
|
0.8
|
95.3
|
95.3
|
M90×3-4H
|
20×20.1
|
|
2700
|
393.7
|
322.1
|
196.3
|
196.9
|
M120×4-4H
|
139.7
|
127
|
127
|
0.8
|
108
|
108
|
M120×4-4H
|
24×23.9
|
|
4500
|
520.7
|
419.1
|
267.9
|
267.9
|
M150×4-4H
|
158.8
|
152.4
|
177.8
|
0.8
|
130
|
162
|
M150×4-4H
|
28×27
|
|
9000
|
660.4
|
520.7
|
350.3
|
355.6
|
M200 4-4H
|
196.9
|
190.5
|
228.6
|
2.5
|
178
|
184
|
M200 4-4H
|
32×33.3
|
|
 |
