LFA4S Pancake Twist Ring load Cells |
|
| Product name : LFA4S Pancake Twist Ring load Cells |
| Item : LFA4S |
| Details : |
Capacity:1t,2t,3t,5t,10t
Wheel shaped load cell, shear beam, good rigidity, strong side force resistance, high output, overload self-locking.
Potted sealed or hermetically sealed.
Widely used in truck scale, railroad scale, tester, crane scale, etc.
SPECIFICATIONS
|
Rated output
|
2.0±0.1% mv/v
|
|
Non-linearity
|
0.05 %F.S
|
|
Hysteresis
|
0.05 %F.S
|
|
Creep in 30 minutes
|
0.05 %F.S
|
|
Zero balance
|
±1 %F.S
|
|
Input resistance
|
380±20Ω
|
|
Output resistance
|
350±3Ω
|
|
Insulation resistance
|
≥5000MΩ
|
|
Excitation voltage
|
10V (maximum 15V) AC/DC
|
|
Environmental protection
|
IP67
|
|
Safe overload
|
150%F.S
|
|
Ultimate overload
|
200%F.S
|
|
Operating temperature range
|
-10～+40℃
|
|
Material
|
Alloy steel
Stainless steel
|
|
Wiring
|
+E Red
-E Black
+S Green
-S White
|
|

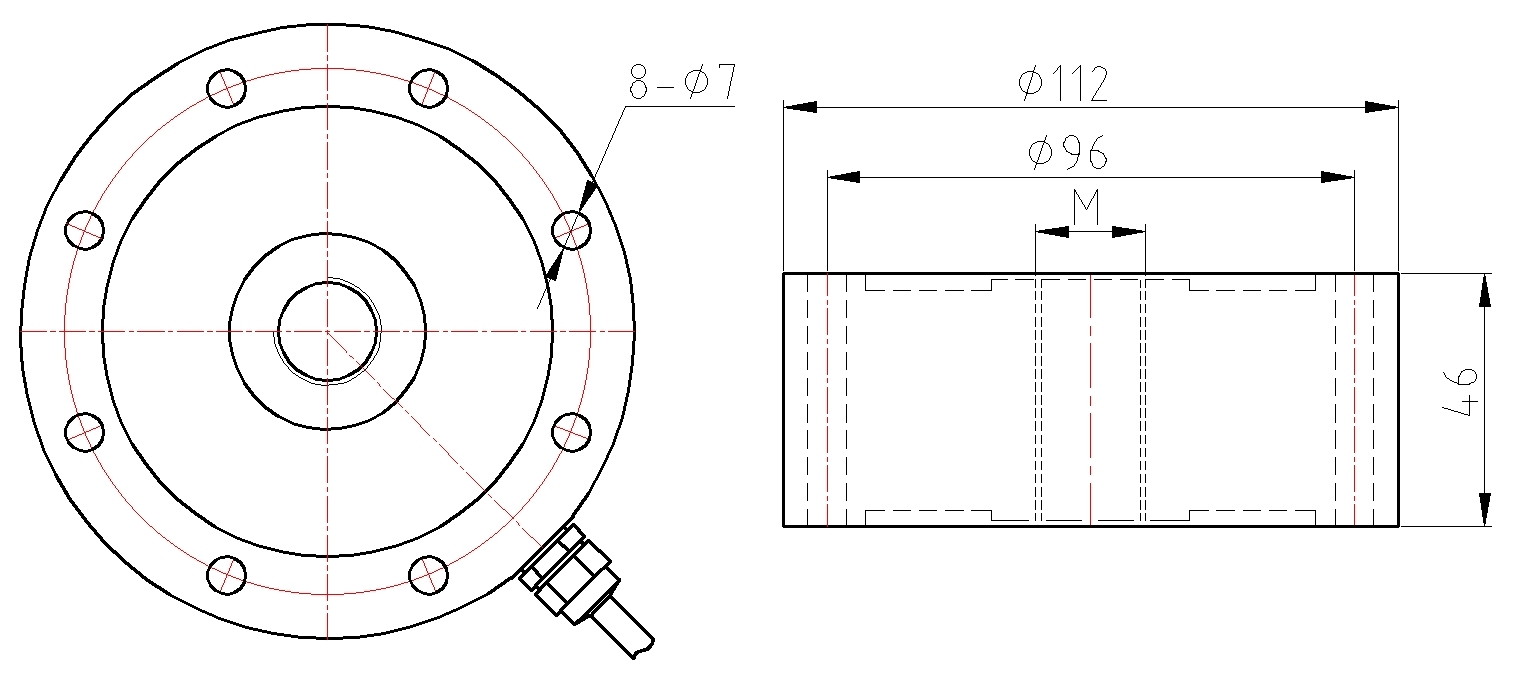

Capacity
|
Size mm
|
|
kN
|
t
|
M
|
|
10,20
|
1,2
|
M16×2
|
|
30,50
|
3,5
|
M20×2
|
|
100
|
10
|
M24×2
|
|
 |
